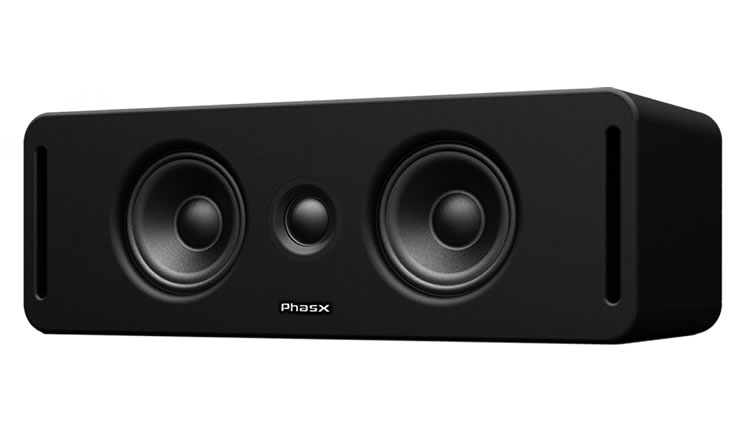

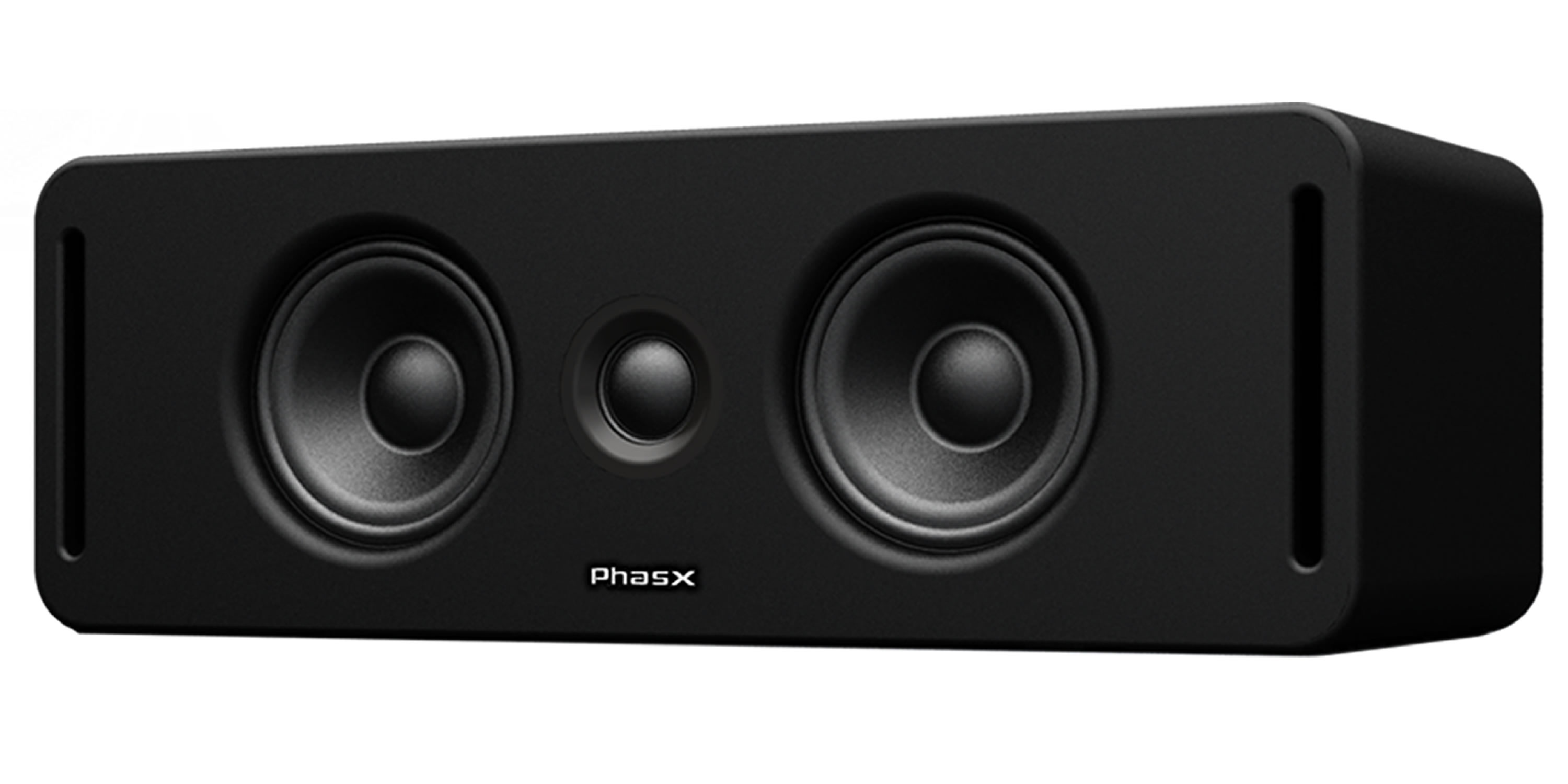

Phasx Essential Active Center Channel

Overview
Features
Specifications
Downloads & Manuals
Overview

Our Essential Center Channel speaker is specifically designed to go with our Thunder UnderBass system. It is matched with the Left and Right Essential speakers to efficiently distribute the workload. The Essential Center Channel provides outstanding depth and clarity with dialogue with the ambient aspects of movies, video games and sporting events.

Features
  • 2-Way Active
  • Magnetically Shielded
  • 30 Watts Continuous
  • 60 Hz – 15 kHz DSP corrected to +/- 1 dB
  • Rear panel controls
  • Stereo RCA Inputs
Specifications

Powered: Yes

Power Configuration: One Stereo Amp

LF Driver Size: 3" (76.2mm)

LF Driver Type: Cone

LF Driver Material: Carbon Fiber

HF Driver Size: .75" (19.05mm)

HF Driver Type: Ultra-low Distortion Flat Dome

HF Driver Material: Silk

LF Driver Power Amp: 15W Per Channel (L/R)

HF Driver Power Amp: 15W Per Channel (L/R)

Total Power Amp: 30W

Frequency Response: 60Hz – 15kHz DSP Corrected to +/- 1 dB

Enclosure Type: Ported

Input Types: 1 x RCA

Height: 4.41" (112mm)

Width: 12.6" (320mm)

Depth: 5.83" (148mm)



Specifications are subject to change at anytime without notice.
