Features

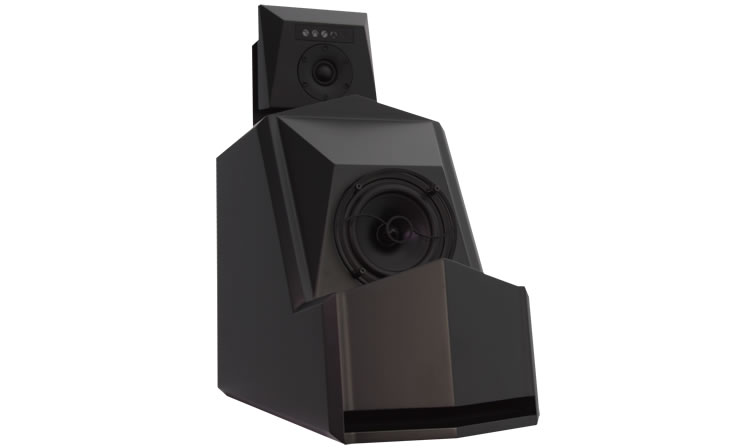

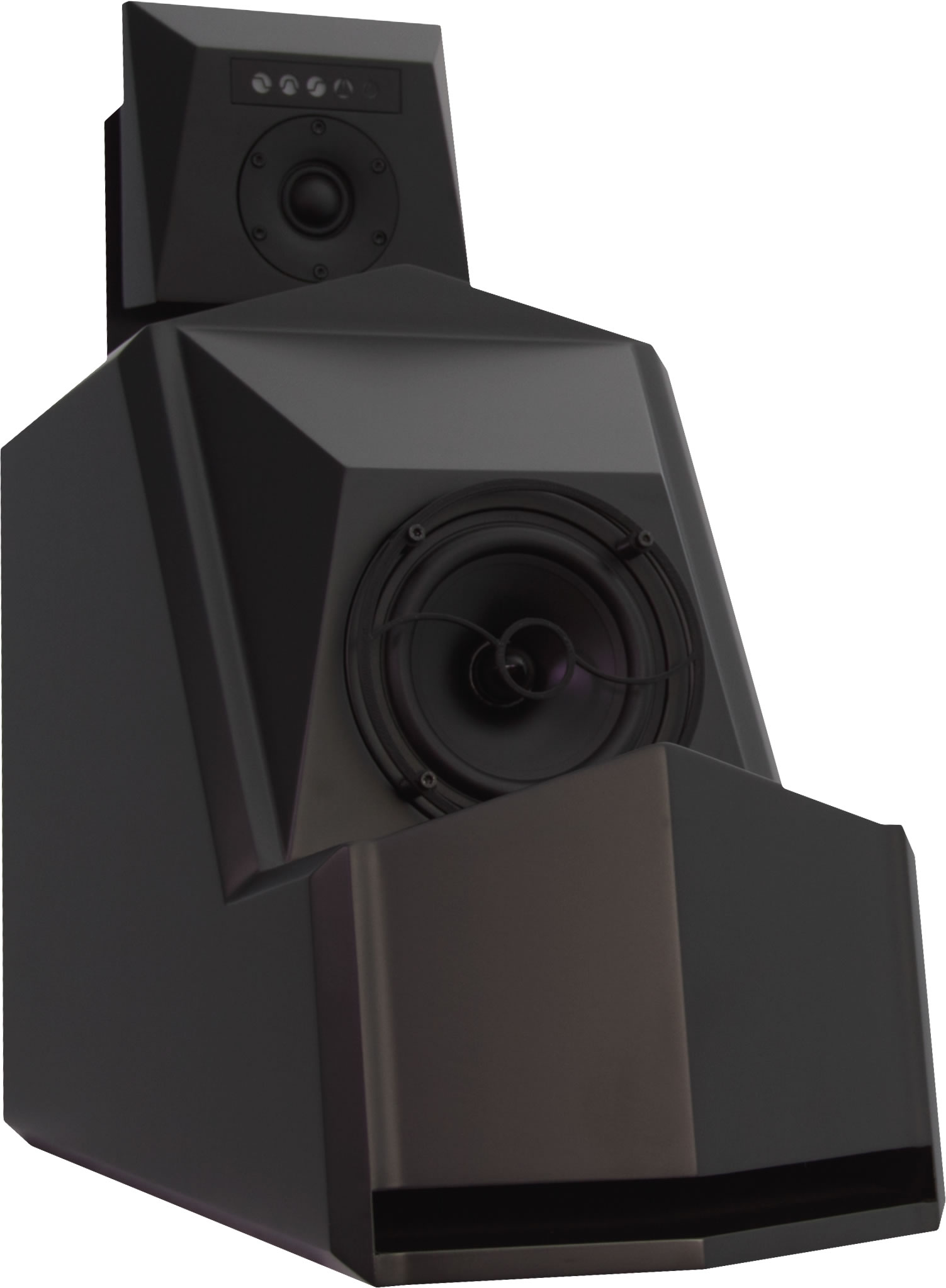

The S600 monitors represent the foundation of everything we do. These monitors are principal components of the PX600 system and very capable of standing on their own.

  • 3-way active DSP monitor
  • 4th order bandpass subwoofer
  • High-resolution 192kHz/ 24bit
  • Ships with digital and analog inputs
  • DSP controlled to yield +/- 1dB response from 27Hz to above 25kHz
  • Shadocaster acoustic technology creates stunning audio imaging in an almost reflection free desktop listening zone.
Specifications

WOOFER

  • Number: 1 per monitor
  • Basket Ø: 7" (177.8mm)
  • Voice Coil Ø: 2" (50mm)
  • Cone Material: Coated Paper

Midrange

  • Number: 1 per monitor
  • Type: Cone Driver with Phase Plug
  • Basket Ø: 5.25" (133.35mm)
  • Voice Coil Ø: 2" (50mm)
  • Cone Material: Coated Paper

Tweeter

  • Number: 1 per monitor
  • Type: Phasx C1D
  • Equiv. Diaphragm Ø: 1.5" (38.1mm)
  • X max: 2mm

Built-in Amplifiers

Woofer: 2 Bridged
  • Type: PWM Hypex NCore
  • Amp Power RMS: Music 200W/ 400W
Midrange: 1
  • Type: PWM Hypex NCore
  • Amp Power RMS: Music 60W/ 120W
Tweeter: 1
  • Type: A/B Hypex NCore
  • Amp Power RMS: Music 30W/ 60W

General

  • Monitor Panel: Back
  • Frequency Response: 27Hz - 26kHz
  • THD > 80Hz:
  • Continuous Output:
  • Max. Peak SPL:
  • Crossover Frequencies:
  • Input Impedance:
  • Weight:
  • Dimensions:
  • Magnetically Shielded:
  • Warranty:

Specifications are subject to change at anytime without notice.
